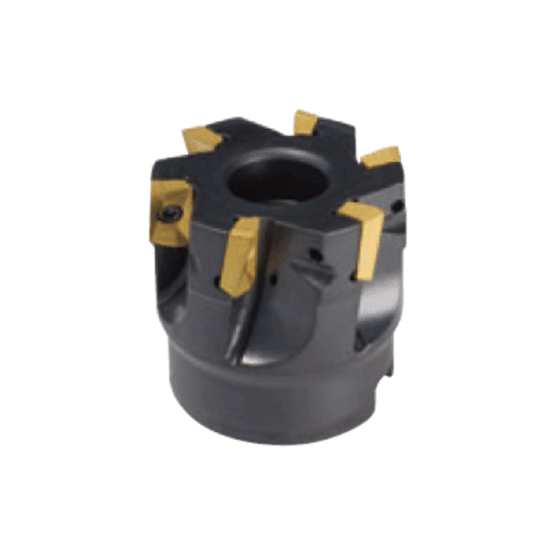

Picture of TUNGALOY TPS17200RBU Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

TUNGALOY TPS17200RBU Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

ANSI: TPS17200RBU

ISO: TPS17200RBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850814
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.0600
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 17
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style AS
Fasteners & Connectors
Insert Screw 6816784
