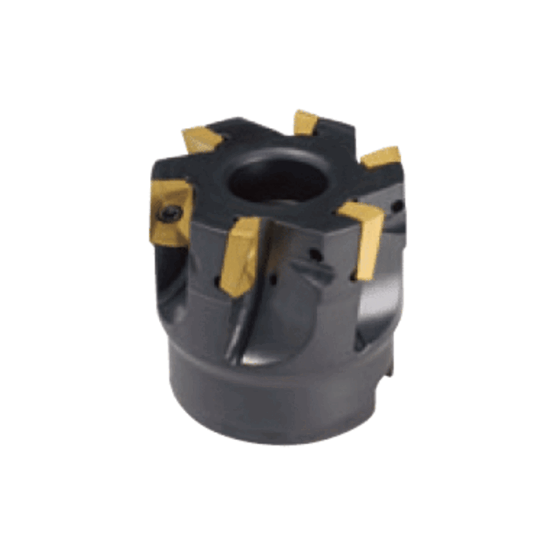

Picture of TUNGALOY TPS17050RB Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TPS17050RB Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TPS17050RB

ISO: TPS17050RB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821421
Delivery date: 3-5 days
$540.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.6299
Cut Dia Max 1.9690 50.01MM
Cut Dia Min 1.9690 50.01MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 17
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6816784
