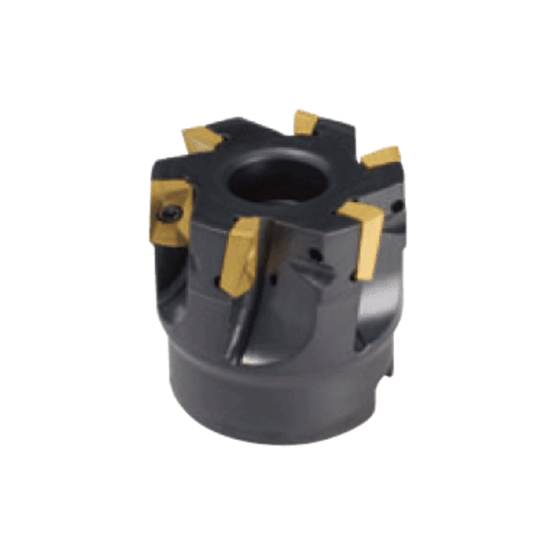

Picture of TUNGALOY TPS17040RB Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 4 Flute

TUNGALOY TPS17040RB Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 4 Flute

ANSI: TPS17040RB

ISO: TPS17040RB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821420
Delivery date: 3-5 days
$432.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 17
Cut Dia Max 1.5750 40.01MM
Machine Side Connection Size 0.6299 16.00MM
Cutter Dia 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6339
Flutes/Inserts 4
Cut Dia Min 1.5750 40.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
