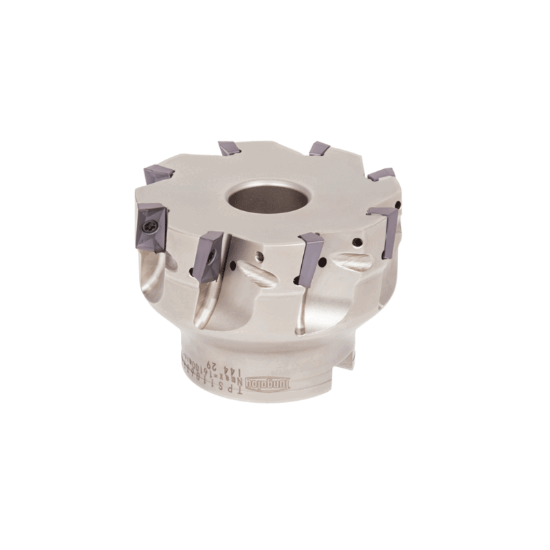

Picture of TUNGALOY TPS11400RBU Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 11 Flute

TUNGALOY TPS11400RBU Milling Cutter 90.0° 4.000 Cutter Diameter Shell Arbor 1.5000 11 Flute

ANSI: TPS11400RBU

ISO: TPS11400RBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850812
Delivery date: 3-5 days
$1,075.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4170
Flutes/Inserts 11
Cut Dia Max 4.0000 101.60MM
Insert Size Ic 11
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AS
Fasteners & Connectors
Insert Screw 6815313
