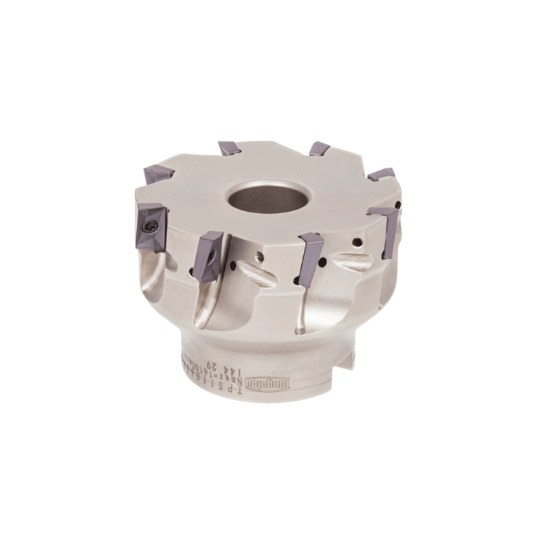

Picture of TUNGALOY TPS11300RBU Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 10 Flute

TUNGALOY TPS11300RBU Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 10 Flute

ANSI: TPS11300RBU

ISO: TPS11300RBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850811
Delivery date: 3-5 days
$830.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Face Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Insert Size Ic 11
Depth Of Cut Max 0.4170
Flutes/Inserts 10
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
