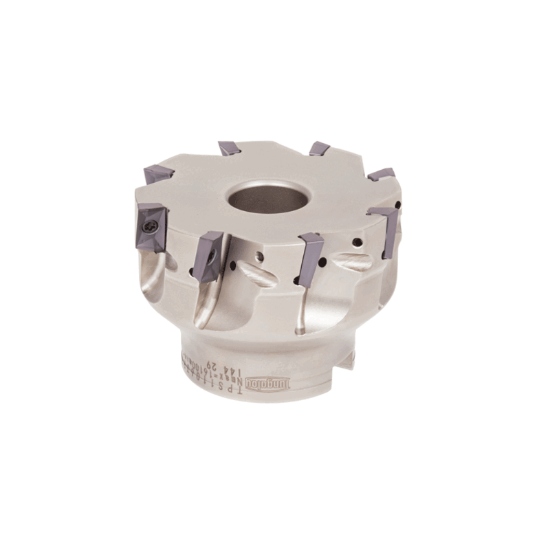

Picture of TUNGALOY TPS11200RBU Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 7 Flute

TUNGALOY TPS11200RBU Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 7 Flute

ANSI: TPS11200RBU

ISO: TPS11200RBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850813
Delivery date: 3-5 days
$581.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.6340
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 11
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
