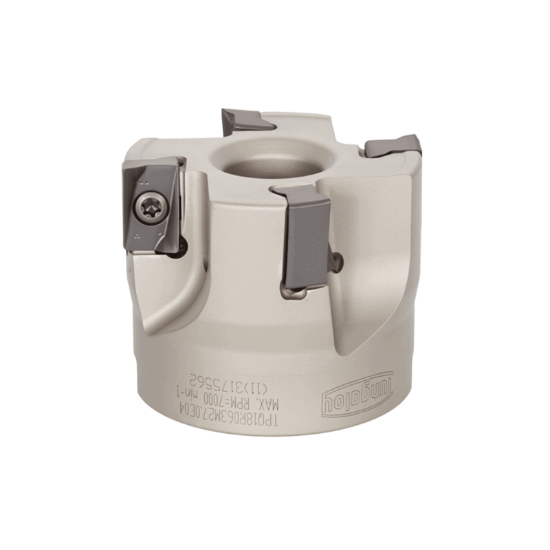

Picture of TUNGALOY TPQ18R250U0100A04 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TPQ18R250U0100A04 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TPQ18R250U0100A04

ISO: TPQ18R250U0100A04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861296
Delivery date: 3-5 days
$676.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Depth Of Cut Max 0.6290
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style LQ
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000219
