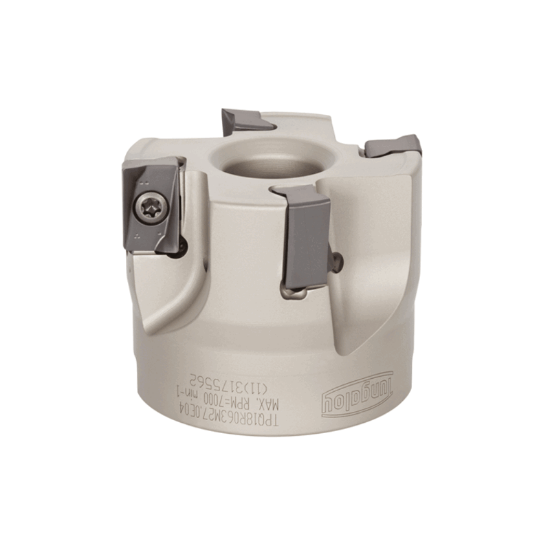

Picture of TUNGALOY TPQ18R200U0075A03 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 3 Flute

TUNGALOY TPQ18R200U0075A03 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 3 Flute

ANSI: TPQ18R200U0075A03

ISO: TPQ18R200U0075A03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861295
Delivery date: 3-5 days
$541.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6290
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Flutes/Inserts 3
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style LQ
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 7000219
