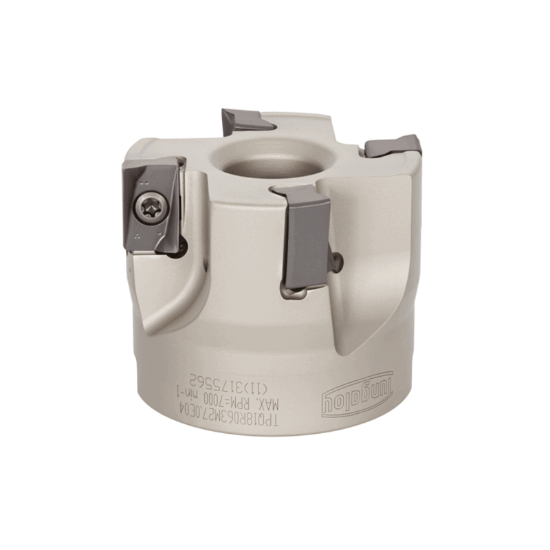

Picture of TUNGALOY TPQ18R063M25.4-04 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TPQ18R063M25.4-04 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TPQ18R063M25.4-04

ISO: TPQ18R063M25.4-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861279
Delivery date: 3-5 days
$676.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.6290
Cutter Dia 2.4800 62.99MM
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LQ
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 7000219
