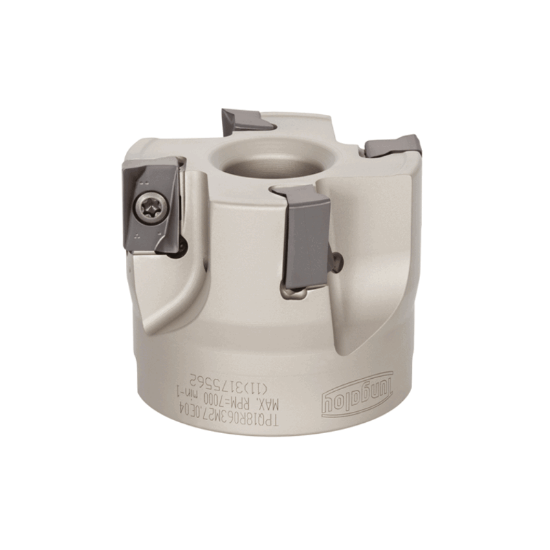

Picture of TUNGALOY TPQ11R250U0075A07 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 0.7500 7 Flute

TUNGALOY TPQ11R250U0075A07 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 0.7500 7 Flute

ANSI: TPQ11R250U0075A07

ISO: TPQ11R250U0075A07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861294
Delivery date: 3-5 days
$745.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Side Milling, Slot Milling, Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3540
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Insert Size Ic 11
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style LQ
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002495
