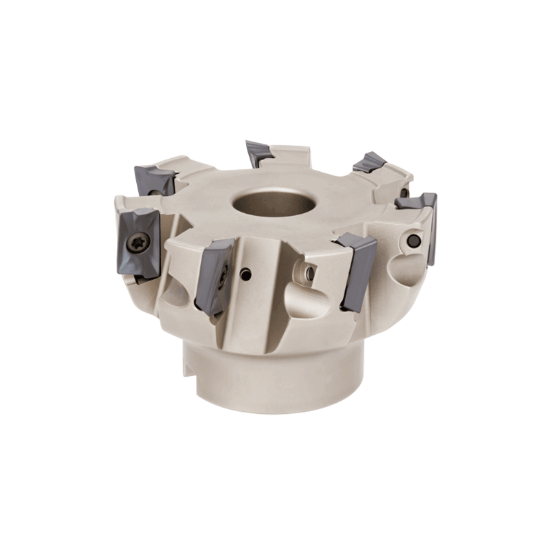

Picture of TUNGALOY TPO18R200U0075A05 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

TUNGALOY TPO18R200U0075A05 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 5 Flute

ANSI: TPO18R200U0075A05

ISO: TPO18R200U0075A05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3017399
Delivery date: 3-5 days
$605.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.6570
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7000517
