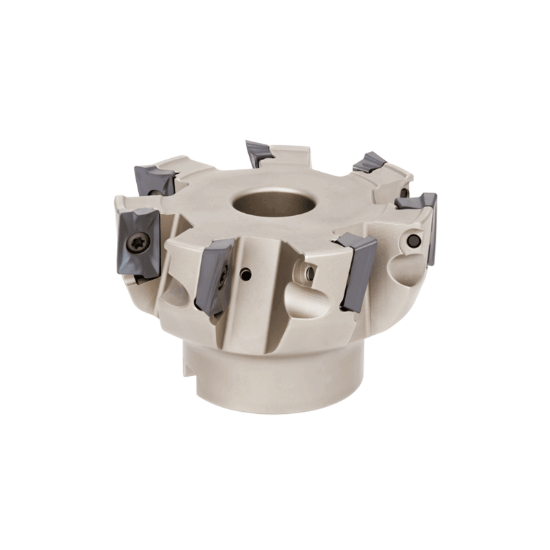

Picture of TUNGALOY TPO18R125M38.1-09 Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 9 Flute

TUNGALOY TPO18R125M38.1-09 Milling Cutter 90.0° 4.921 Cutter Diameter Shell Arbor 1.5000 9 Flute

ANSI: TPO18R125M38.1-09

ISO: TPO18R125M38.1-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3029030
Delivery date: 3-5 days
$1,283.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6575
Tool Material Steel
Cut Dia Max 4.9210 124.99MM
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.9210 124.99MM
Flutes/Inserts 9
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006441
