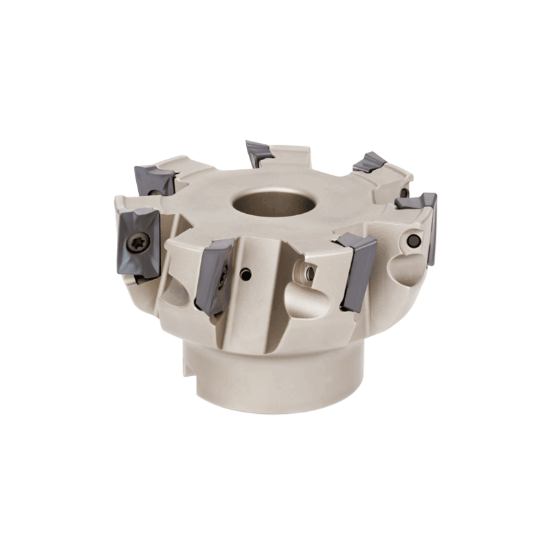

Picture of TUNGALOY TPO18R080M27.0E07 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 7 Flute

TUNGALOY TPO18R080M27.0E07 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 7 Flute

ANSI: TPO18R080M27.0E07

ISO: TPO18R080M27.0E07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028986
Delivery date: 3-5 days
$934.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Tool Material Steel
Insert Size Ic 18
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 7
Depth Of Cut Max 0.6575
Cut Dia Max 3.1500 80.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7000461
