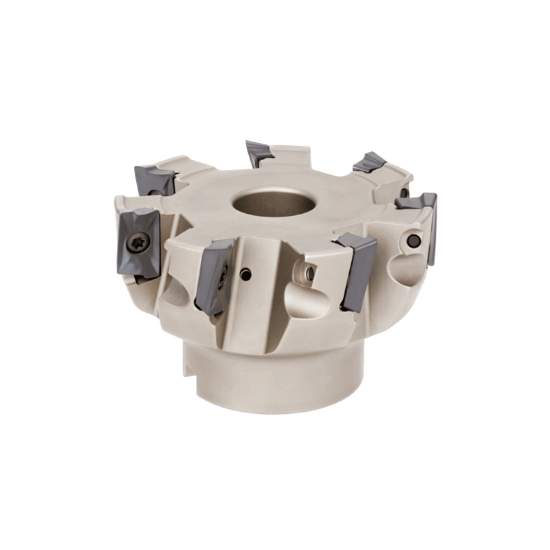

Picture of TUNGALOY TPO18R063M22.0-06 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 6 Flute

TUNGALOY TPO18R063M22.0-06 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 6 Flute

ANSI: TPO18R063M22.0-06

ISO: TPO18R063M22.0-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3029027
Delivery date: 3-5 days
$718.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Cutter Dia 2.4800 62.99MM
Depth Of Cut Max 0.6575
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Flutes/Inserts 6
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7006441
