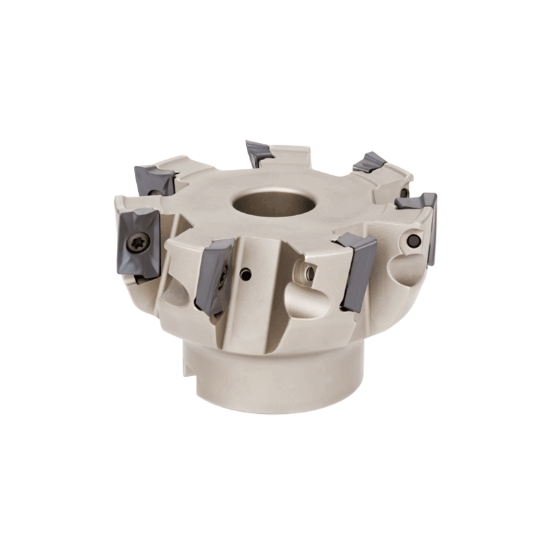

Picture of TUNGALOY TPO18R050M22.0E05 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TPO18R050M22.0E05 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TPO18R050M22.0E05

ISO: TPO18R050M22.0E05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028984
Delivery date: 3-5 days
$605.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 1.9690 50.01MM
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 18
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.6575
Cut Dia Min 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7000461
