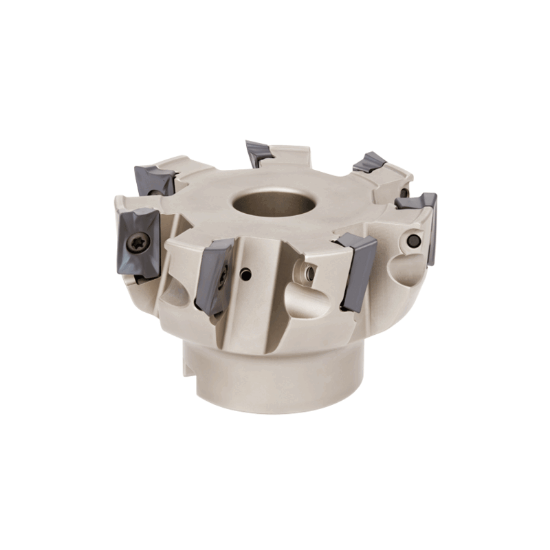

Picture of TUNGALOY TPO18R050M22.0-05 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY TPO18R050M22.0-05 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: TPO18R050M22.0-05

ISO: TPO18R050M22.0-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3029026
Delivery date: 3-5 days
$605.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Pocket Milling, Ramp Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Max 1.9690 50.01MM
Tool Material Steel
Insert Size Ic 18
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 5
Depth Of Cut Max 0.6575
Cut Dia Min 1.9690 50.01MM
Cutting & Machining Properties
Insert Style AO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 7006441
