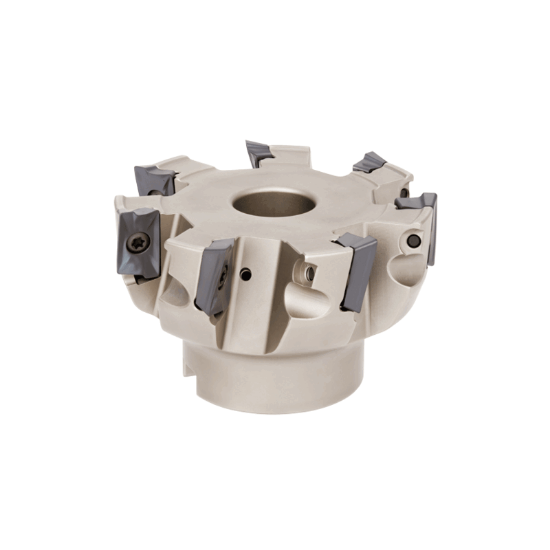

Picture of TUNGALOY TPO18R040M16.0-04 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 4 Flute

TUNGALOY TPO18R040M16.0-04 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 4 Flute

ANSI: TPO18R040M16.0-04

ISO: TPO18R040M16.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3029025
Delivery date: 3-5 days
$541.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 1.5750 40.01MM
Cut Dia Min 1.5750 40.01MM
Flutes/Inserts 4
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Depth Of Cut Max 0.6575
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7006441
