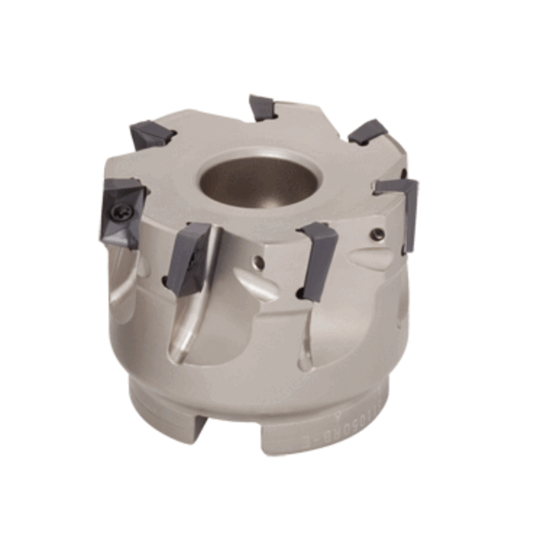

Picture of TUNGALOY TPO11R080M27.0E10 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 10 Flute

TUNGALOY TPO11R080M27.0E10 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 10 Flute

ANSI: TPO11R080M27.0E10

ISO: TPO11R080M27.0E10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996107
Delivery date: 3-5 days
$742.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11
Depth Of Cut Max 0.2362
Cut Dia Max 3.1500 80.01MM
Flutes/Inserts 10
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Fasteners & Connectors
Insert Screw 6819732
