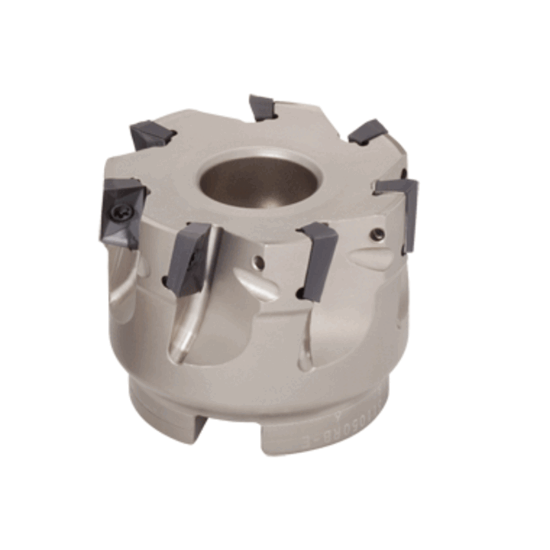

Picture of TUNGALOY TPO11R080M25.4-10 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 10 Flute

TUNGALOY TPO11R080M25.4-10 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 10 Flute

ANSI: TPO11R080M25.4-10

ISO: TPO11R080M25.4-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996105
Delivery date: 3-5 days
$742.95
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 3.1500 80.01MM
Flutes/Inserts 10
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 11
Cut Dia Min 3.1500 80.01MM
Tool Material Steel
Depth Of Cut Max 0.4173
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style AS
Fasteners & Connectors
Insert Screw 6819732
