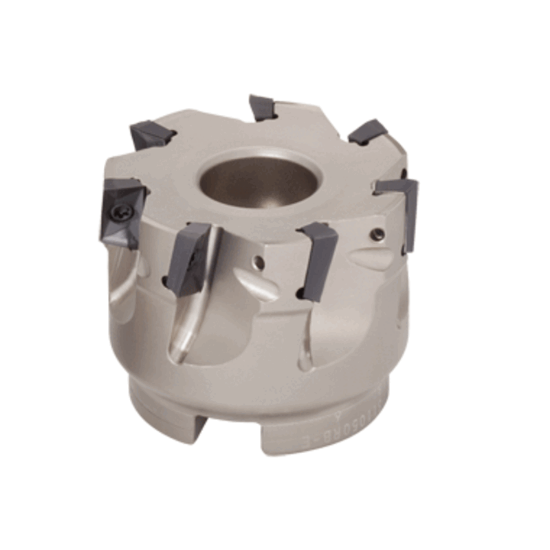

Picture of TUNGALOY TPO11R063M22.0E08 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 8 Flute

TUNGALOY TPO11R063M22.0E08 Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 8 Flute

ANSI: TPO11R063M22.0E08

ISO: TPO11R063M22.0E08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996104
Delivery date: 3-5 days
$626.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 11
Cutter Dia 2.4800 62.99MM
Depth Of Cut Max 0.4173
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 8
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Cutting & Machining Properties
Hand R/L Right
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 6819732
