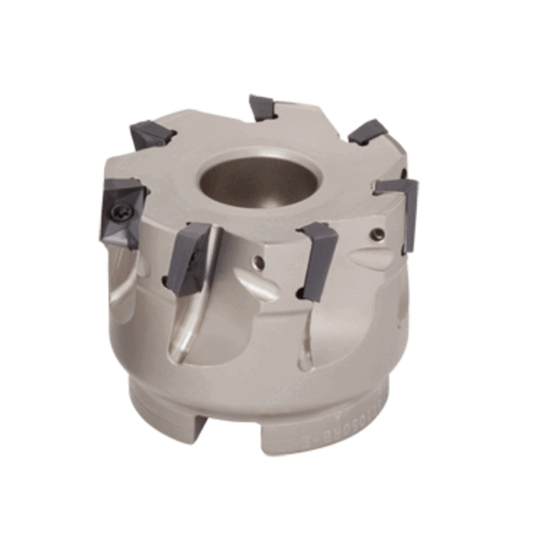

Picture of TUNGALOY TPO11R050M22.0E07 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 7 Flute

TUNGALOY TPO11R050M22.0E07 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 7 Flute

ANSI: TPO11R050M22.0E07

ISO: TPO11R050M22.0E07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996103
Delivery date: 3-5 days
$548.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Cut Dia Min 1.9690 50.01MM
Insert Size Ic 11
Flutes/Inserts 7
Cut Dia Max 1.9690 50.01MM
Depth Of Cut Max 0.4173
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Style AS
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6819732
