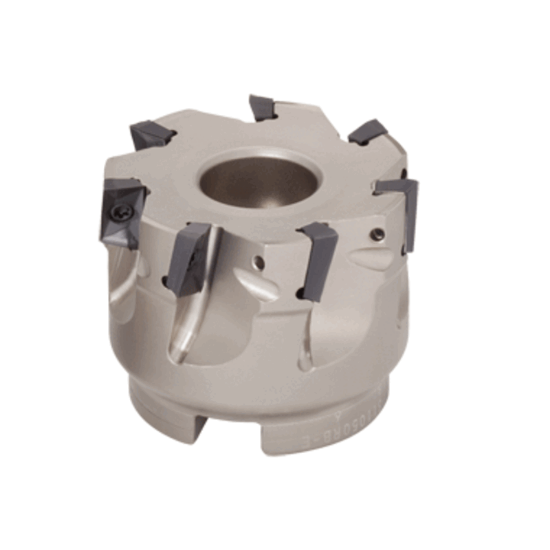

Picture of TUNGALOY TPO11R040M16.0E06 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TPO11R040M16.0E06 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TPO11R040M16.0E06

ISO: TPO11R040M16.0E06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996102
Delivery date: 3-5 days
$438.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4173
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 1.5750 40.01MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 6
Insert Size Ic 11
Cut Dia Min 1.5750 40.01MM
Cutting & Machining Properties
Insert Style AS
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6819732
