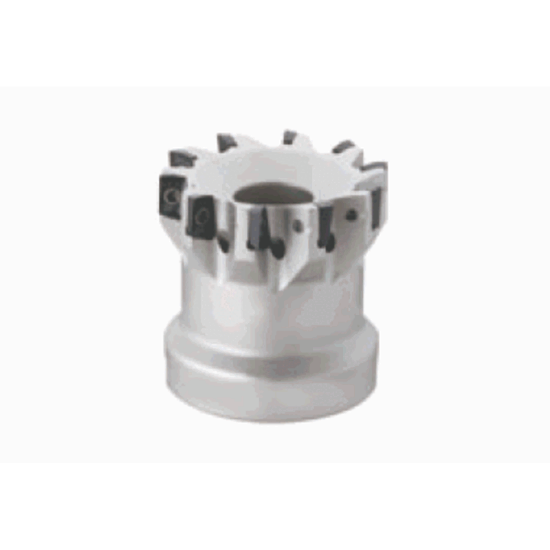

Picture of TUNGALOY TPO07R050M22.0E12 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 12 Flute

TUNGALOY TPO07R050M22.0E12 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 12 Flute

ANSI: TPO07R050M22.0E12

ISO: TPO07R050M22.0E12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861310
Delivery date: 3-5 days
$896.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Tool Material Steel
Flutes/Inserts 12
Depth Of Cut Max 0.6300
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 7
Cut Dia Max 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7066668
