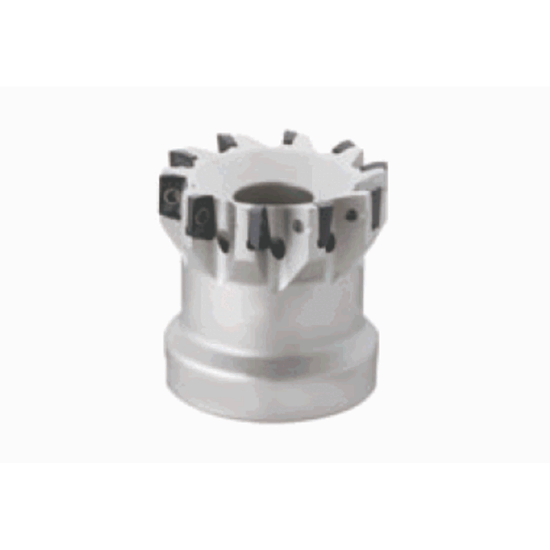

Picture of TUNGALOY TPO07R032M16.0E08 Milling Cutter 90.0° 1.260 Cutter Diameter Shell Arbor 0.6300 8 Flute

TUNGALOY TPO07R032M16.0E08 Milling Cutter 90.0° 1.260 Cutter Diameter Shell Arbor 0.6300 8 Flute

ANSI: TPO07R032M16.0E08

ISO: TPO07R032M16.0E08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861289
Delivery date: 3-5 days
$569.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Cut Dia Min 1.2600 32.00MM
Flutes/Inserts 8
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 7
Depth Of Cut Max 0.3540
Cutter Dia 1.2600 32.00MM
Cut Dia Max 1.2600 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7066668
