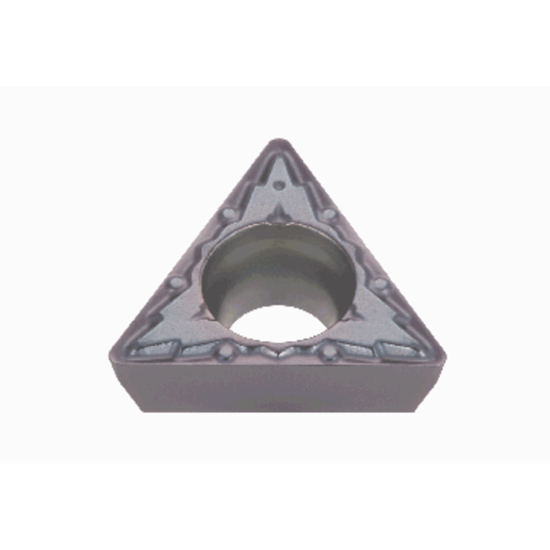

Picture of TUNGALOY TPMT220.5 PSF NS9530 Insert Triangle 0.008 Corner Radius

TUNGALOY TPMT220.5 PSF NS9530 Insert Triangle 0.008 Corner Radius

ANSI: TPMT220.5 PSF NS9530

ISO: TPMT110302 PSF NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998533
Delivery date: 3-5 days
$5.04

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 11deg relief ang., M class, triangular insert, for finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Grade NS9530
Shipping State Illinois
Application Turning Insert
Made In USA No
Insert/Tool Insert
Insert Type Positive
Insert Application Finishing
Package Size 10
Dimensional Specifications
Insert Size Ic 11 "22"
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
