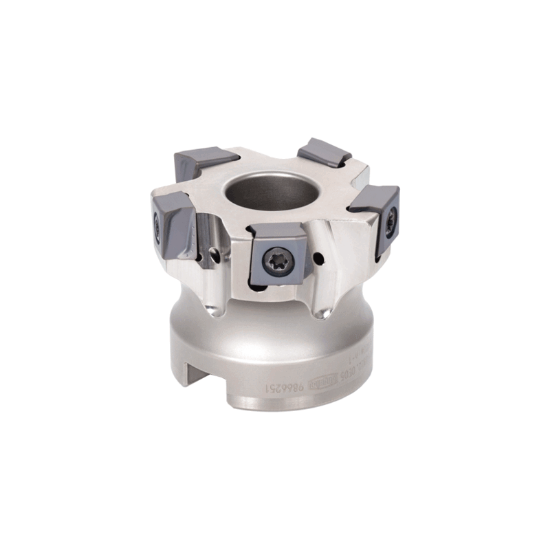

Picture of TUNGALOY TPM11R080M27.0E07 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 7 Flute

TUNGALOY TPM11R080M27.0E07 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 0.6300 7 Flute

ANSI: TPM11R080M27.0E07

ISO: TPM11R080M27.0E07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6892285
Delivery date: 3-5 days
$903.20
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cut Dia Max 3.1500 80.01MM
Depth Of Cut Max 0.3800
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 11
Flutes/Inserts 7
Tool Material Steel
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
Fasteners & Connectors
Insert Screw 7032313
