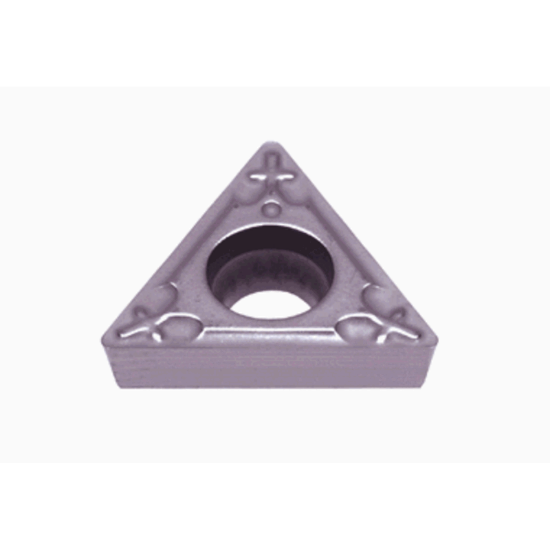

Picture of TUNGALOY TPGT32.52-01 NS520 Insert Triangle 0.031 Corner Radius

TUNGALOY TPGT32.52-01 NS520 Insert Triangle 0.031 Corner Radius

ANSI: TPGT32.52-01 NS520

ISO: TPGT16T308 01 NS520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808979
Delivery date: 3-5 days
$14.31

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Finish turning of various steels and cast irons. Highly tough and wear resistant cermet for high speed finishing. Capable of running in wet cutting.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Application Semi Finishing, Roughing
Grade NS520
Application Turning Insert
Made In USA No
Insert/Tool Insert
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "32"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Corner Radius 0.0315 0.80MM
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
