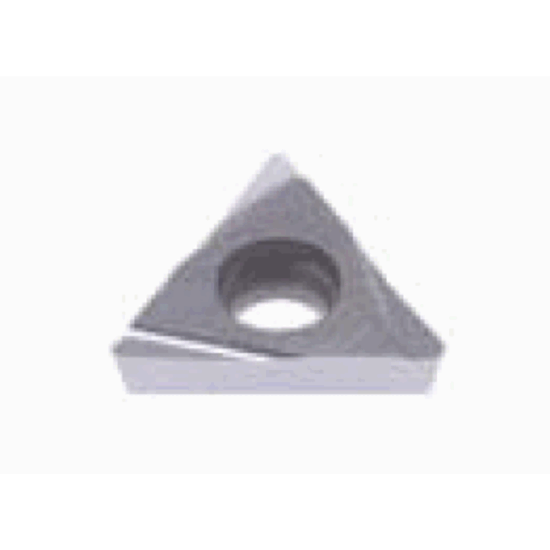

Picture of TUNGALOY TPGT32.50.5 L W15 GT9530 Insert Triangle TiOCN 0.008 Corner Radius

TUNGALOY TPGT32.50.5 L W15 GT9530 Insert Triangle TiOCN 0.008 Corner Radius

ANSI: TPGT32.50.5 L W15 GT9530

ISO: TPGT16T302 L W15 GT9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6997887
Delivery date: 3-5 days
$20.70

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 11deg relief ang., G class, triangular insert, leadtype chipbreaker for finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

New coated cermet grade. GT9530 offers longer tool life in high speed machining.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Package Size 10
Grade GT9530
Made In USA No
Shipping State Illinois
Coating TiOCN
Insert Application Finishing
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16 "32"
Cut Rating <48HRC Steel
Corner Radius 0.0080 0.20MM
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
