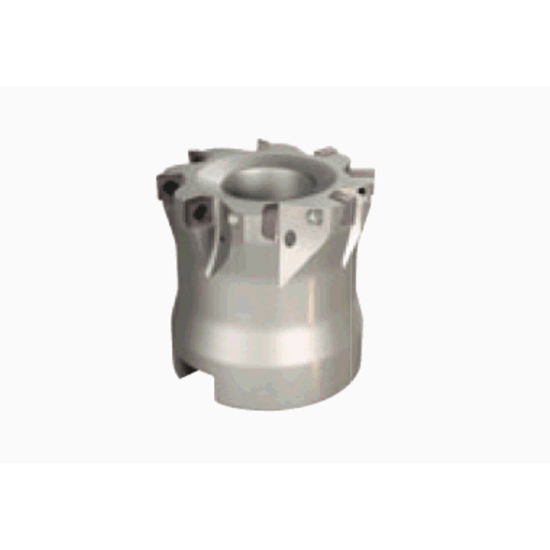

Picture of TUNGALOY TPD05R200U0075A10 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 10 Flute

TUNGALOY TPD05R200U0075A10 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 10 Flute

ANSI: TPD05R200U0075A10

ISO: TPD05R200U0075A10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3109299
Delivery date: 3-5 days
$844.35
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 10
Cut Dia Min 2.0000 50.80MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.6299
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style SD
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 4351854
