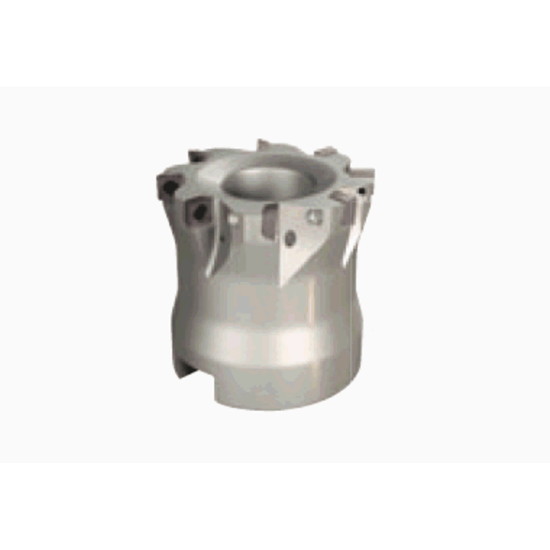

Picture of TUNGALOY TPD05R032M16.0E06 Milling Cutter 90.0° 1.260 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TPD05R032M16.0E06 Milling Cutter 90.0° 1.260 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TPD05R032M16.0E06

ISO: TPD05R032M16.0E06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3109296
Delivery date: 3-5 days
$518.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Flutes/Inserts 6
Insert Size Ic 5
Tool Material Steel
Depth Of Cut Max 0.1575
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size 0.6299 16.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 1.2600 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SD
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4351854
