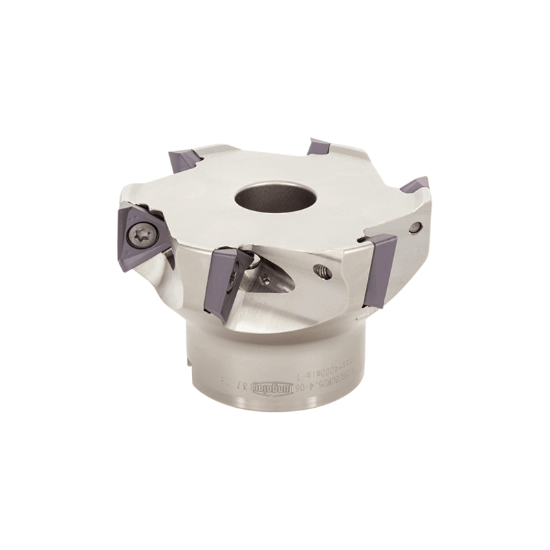

Picture of TUNGALOY TPA15R600U0200A10N Milling Cutter 90.0° 6.000 Cutter Diameter Shell Arbor 2.0000 10 Flute

TUNGALOY TPA15R600U0200A10N Milling Cutter 90.0° 6.000 Cutter Diameter Shell Arbor 2.0000 10 Flute

ANSI: TPA15R600U0200A10N

ISO: TPA15R600U0200A10N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996250
Delivery date: 3-5 days
$1,609.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 6.0000 152.40MM
Tool Material Steel
Flutes/Inserts 10
Insert Size Ic 15
Depth Of Cut Max 0.4173
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Max 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style TO
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 4352056
