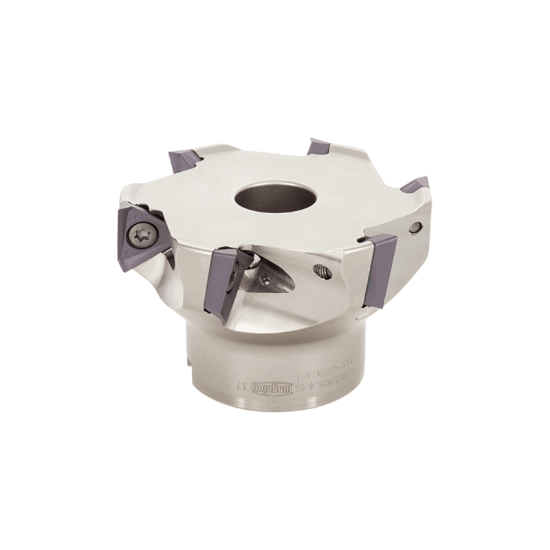

Picture of TUNGALOY TPA15R250U0075A05 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 0.7500 5 Flute

TUNGALOY TPA15R250U0075A05 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 0.7500 5 Flute

ANSI: TPA15R250U0075A05

ISO: TPA15R250U0075A05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996246
Delivery date: 3-5 days
$602.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 15
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.5900
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Fasteners & Connectors
Insert Screw 4352056
