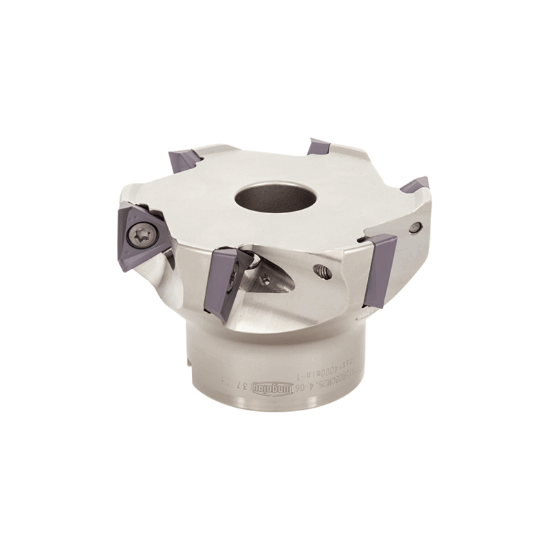

Picture of TUNGALOY TPA15R080M25.4-06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 6 Flute

TUNGALOY TPA15R080M25.4-06 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 6 Flute

ANSI: TPA15R080M25.4-06

ISO: TPA15R080M25.4-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996232
Delivery date: 3-5 days
$793.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 15
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.1500 80.01MM
Flutes/Inserts 6
Depth Of Cut Max 0.5906
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Hand R/L Right
Insert Style TO
Fasteners & Connectors
Insert Screw 4352056
