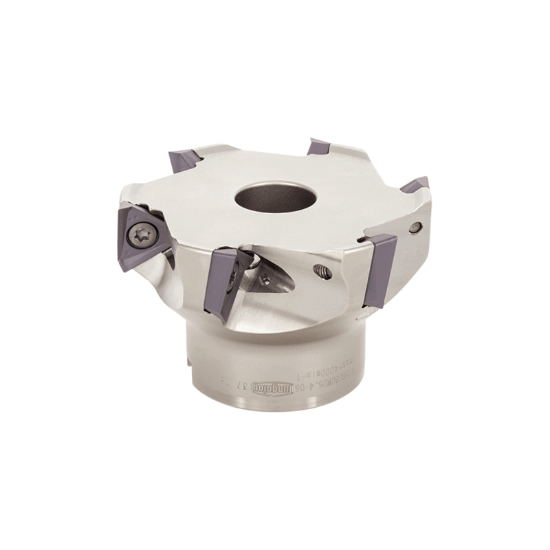

Picture of TUNGALOY TPA15R050M22.0E04 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

TUNGALOY TPA15R050M22.0E04 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

ANSI: TPA15R050M22.0E04

ISO: TPA15R050M22.0E04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996230
Delivery date: 3-5 days
$507.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Depth Of Cut Max 0.5906
Cut Dia Max 1.9690 50.01MM
Insert Size Ic 15
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Tool Material Steel
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Fasteners & Connectors
Insert Screw 4352056
