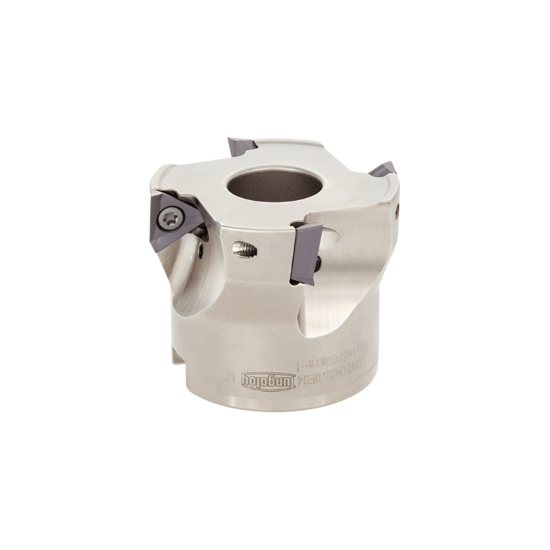

Picture of TUNGALOY TPA10R300U0100A07 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 7 Flute

TUNGALOY TPA10R300U0100A07 Milling Cutter 90.0° 3.000 Cutter Diameter Shell Arbor 1.0000 7 Flute

ANSI: TPA10R300U0100A07

ISO: TPA10R300U0100A07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996243
Delivery date: 3-5 days
$929.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 7
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002353
