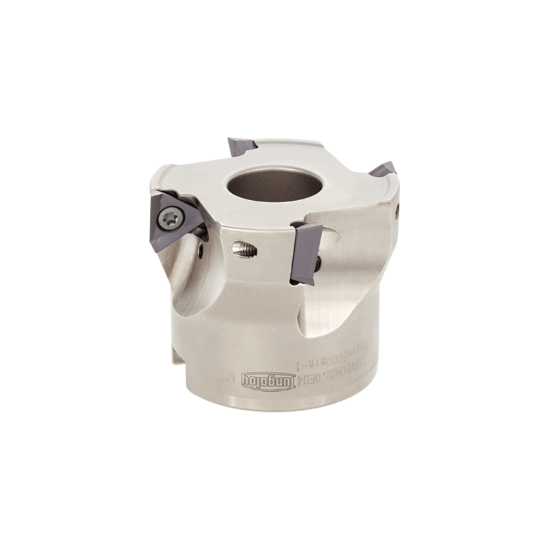

Picture of TUNGALOY TPA10R250U0075A06 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 0.7500 6 Flute

TUNGALOY TPA10R250U0075A06 Milling Cutter 90.0° 2.500 Cutter Diameter Shell Arbor 0.7500 6 Flute

ANSI: TPA10R250U0075A06

ISO: TPA10R250U0075A06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996242
Delivery date: 3-5 days
$715.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3940
Flutes/Inserts 6
Cut Dia Min 2.5000 63.50MM - 2-1/2
Insert Size Ic 10
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TO
Fasteners & Connectors
Insert Screw 7002353
