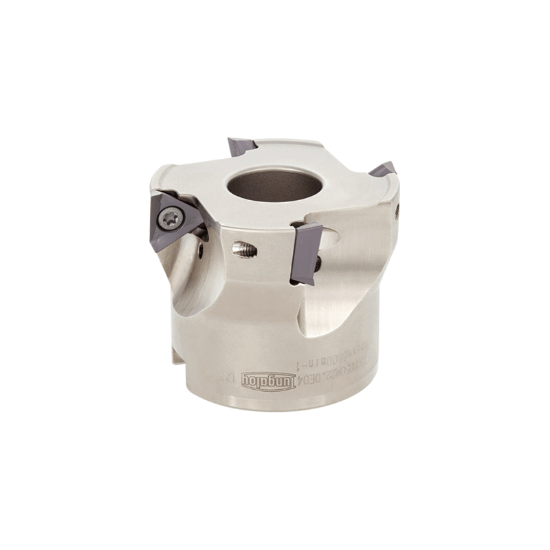

Picture of TUNGALOY TPA10R200U0075A04 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

TUNGALOY TPA10R200U0075A04 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

ANSI: TPA10R200U0075A04

ISO: TPA10R200U0075A04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996241
Delivery date: 3-5 days
$528.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 4
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3940
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 10
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002353
