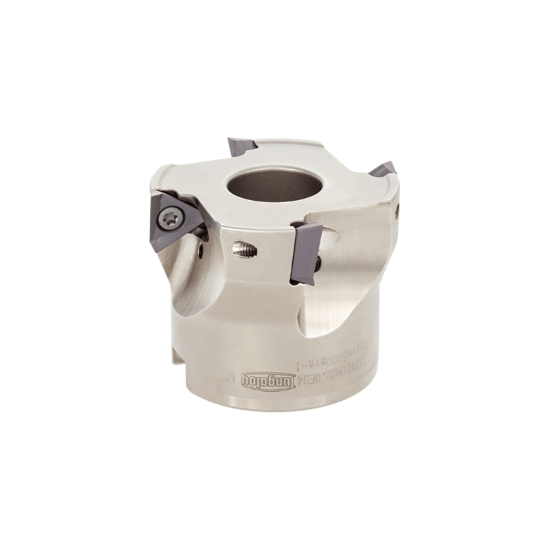

Picture of TUNGALOY TPA10R080M25.4-07 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 7 Flute

TUNGALOY TPA10R080M25.4-07 Milling Cutter 90.0° 3.150 Cutter Diameter Shell Arbor 1.0000 7 Flute

ANSI: TPA10R080M25.4-07

ISO: TPA10R080M25.4-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996226
Delivery date: 3-5 days
$929.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 7
Insert Size Ic 10
Depth Of Cut Max 0.0394
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002353
