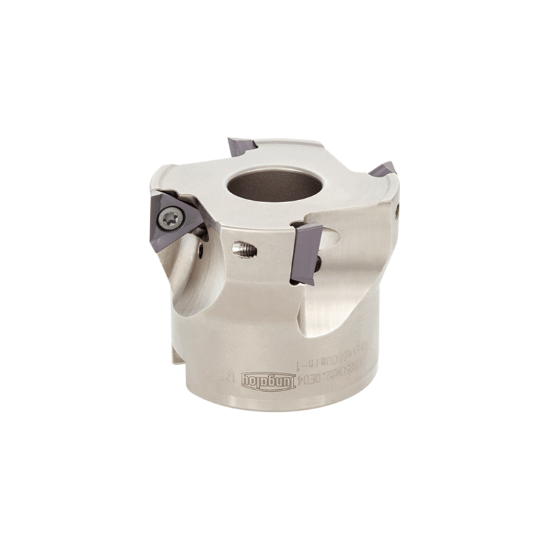

Picture of TUNGALOY TPA10R050M22.0E04 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

TUNGALOY TPA10R050M22.0E04 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 4 Flute

ANSI: TPA10R050M22.0E04

ISO: TPA10R050M22.0E04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996224
Delivery date: 3-5 days
$528.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 10
Cut Dia Max 1.9690 50.01MM
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Depth Of Cut Max 0.0394
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 4
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style TO
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7002353
