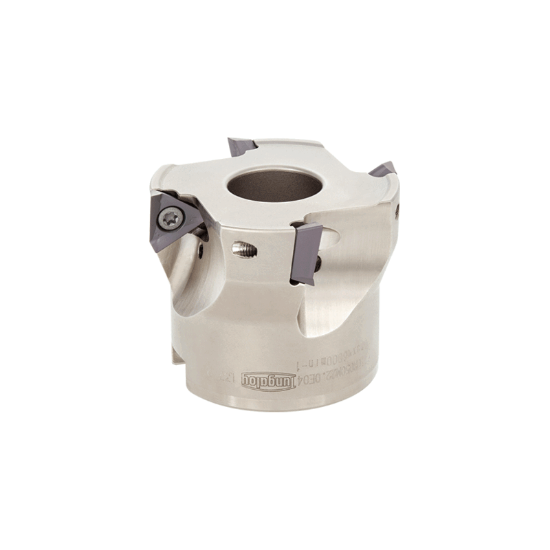

Picture of TUNGALOY TPA10R040M16.0E04 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 4 Flute

TUNGALOY TPA10R040M16.0E04 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 4 Flute

ANSI: TPA10R040M16.0E04

ISO: TPA10R040M16.0E04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996223
Delivery date: 3-5 days
$525.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.0394
Flutes/Inserts 4
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 10
Cut Dia Min 1.5750 40.01MM
Tool Material Steel
Cutter Dia 1.5750 40.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 1.5750 40.01MM
Cutting & Machining Properties
Hand R/L Right
Insert Style TO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7002353
