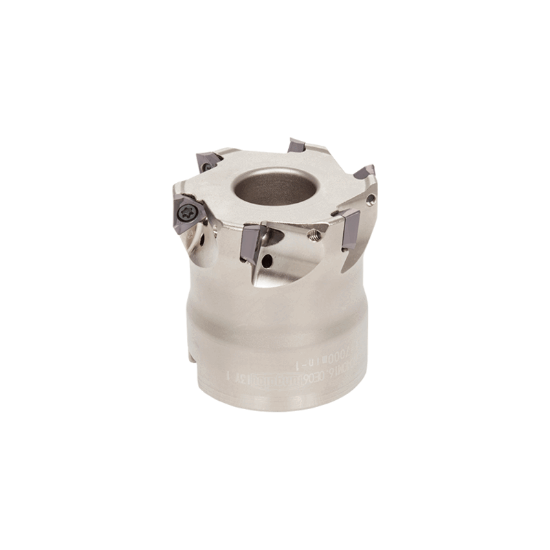

Picture of TUNGALOY TPA06R200U0075A08 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 8 Flute

TUNGALOY TPA06R200U0075A08 Milling Cutter 90.0° 2.000 Cutter Diameter Shell Arbor 0.7500 8 Flute

ANSI: TPA06R200U0075A08

ISO: TPA06R200U0075A08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996240
Delivery date: 3-5 days
$725.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3940
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 6
Flutes/Inserts 8
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
