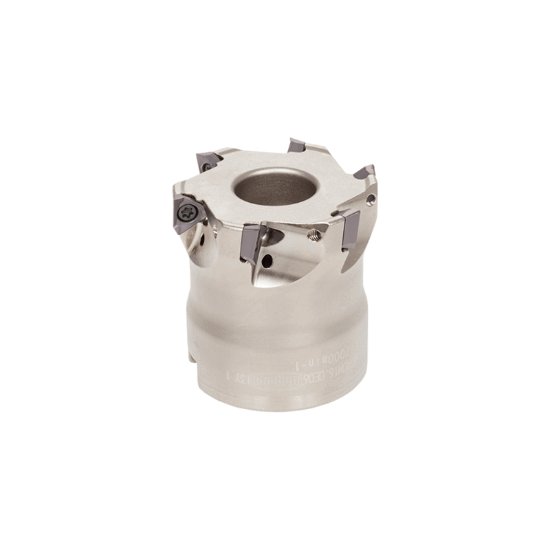

Picture of TUNGALOY TPA06R050M22.0E08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 8 Flute

TUNGALOY TPA06R050M22.0E08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell Arbor 0.8661 8 Flute

ANSI: TPA06R050M22.0E08

ISO: TPA06R050M22.0E08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996222
Delivery date: 3-5 days
$725.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 0.0394
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 8
Insert Size Ic 6
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 1.9690 50.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
