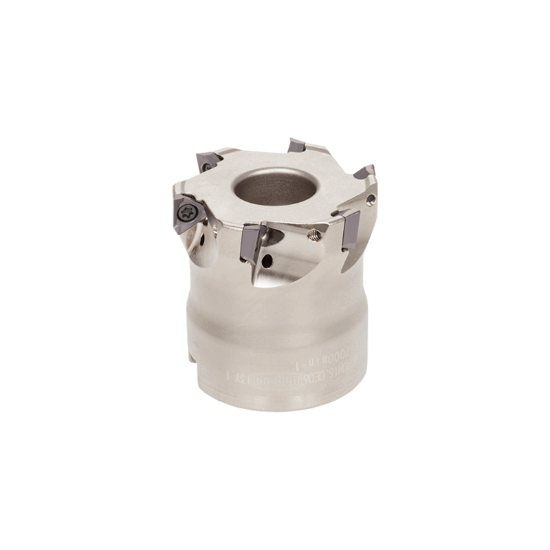

Picture of TUNGALOY TPA06R040M16.0E06 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 6 Flute

TUNGALOY TPA06R040M16.0E06 Milling Cutter 90.0° 1.575 Cutter Diameter Shell Arbor 0.6300 6 Flute

ANSI: TPA06R040M16.0E06

ISO: TPA06R040M16.0E06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996221
Delivery date: 3-5 days
$619.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Insert Size Ic 6
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2362
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 6
Cut Dia Max 1.5750 40.01MM
Cut Dia Min 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
