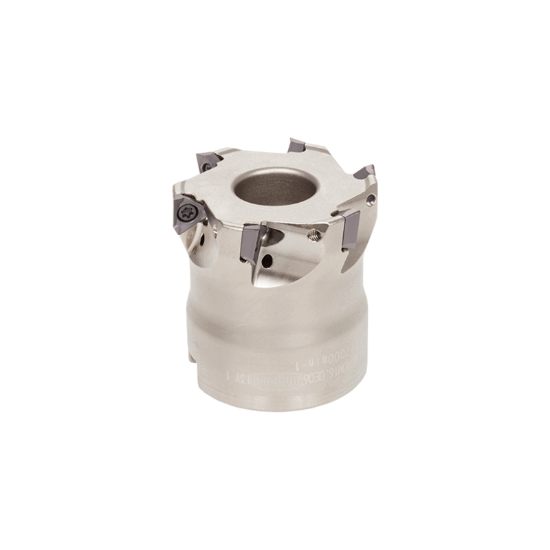

Picture of TUNGALOY TPA06R032M16.0E05 Milling Cutter 90.0° 1.260 Cutter Diameter Shell Arbor 0.6300 5 Flute

TUNGALOY TPA06R032M16.0E05 Milling Cutter 90.0° 1.260 Cutter Diameter Shell Arbor 0.6300 5 Flute

ANSI: TPA06R032M16.0E05

ISO: TPA06R032M16.0E05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996220
Delivery date: 3-5 days
$546.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Shipping State Illinois
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 6
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2362
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
