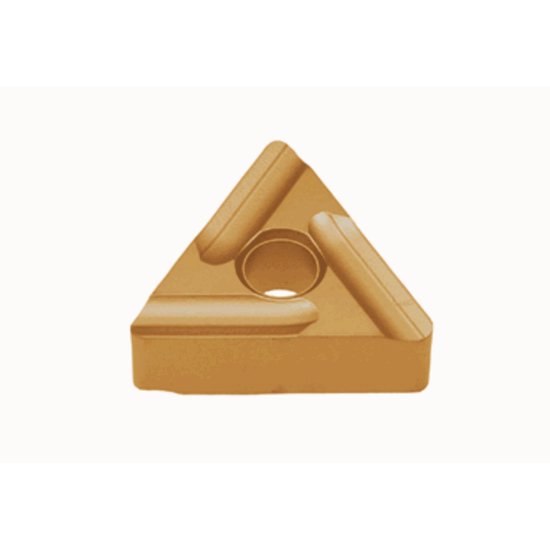

TUNGALOY TNMG432 L S NS9530 Insert Triangle 0.031 Corner Radius

ANSI: TNMG432 L S NS9530

ISO: TNMG220408 LS NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998224
Delivery date: 3-5 days
$8.76

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Negative relief ang., M class, triangular insert, for medium cutting

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Insert Type Negative
Application Turning Insert
Grade NS9530
Made In USA No
Shipping State Illinois
Package Size 10
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 22 "43"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
