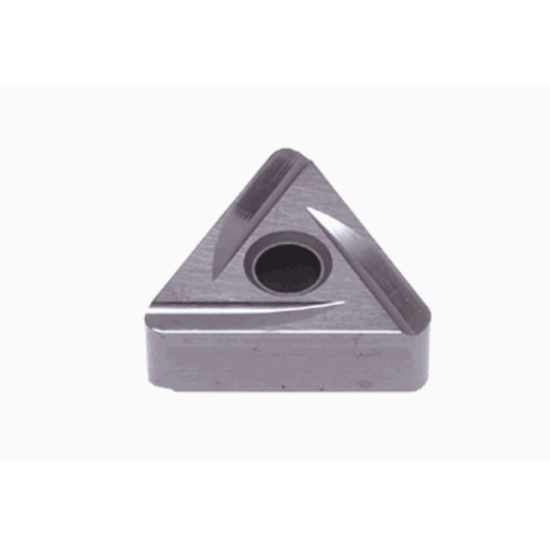

TUNGALOY TNGG331R C NS520 Insert Triangle 0.015 Corner Radius

ANSI: TNGG331R C NS520

ISO: TNGG160404R C NS520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808182
Delivery date: 3-5 days
$12.63

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Finish turning of various steels and cast irons. Highly tough and wear resistant cermet for high speed finishing. Capable of running in wet cutting.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert/Tool Insert
Insert Application Finishing
Package Size 10
Grade NS520
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Corner Radius 0.0157 0.40MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TN
