TUNGALOY TNGA331 DIA DX160 Insert Triangle 0.016 Corner Radius

ANSI: TNGA331 DIA DX160

ISO: TNGA160404 DIA DX160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808090
Delivery date: 3-5 days
$121.95

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Details

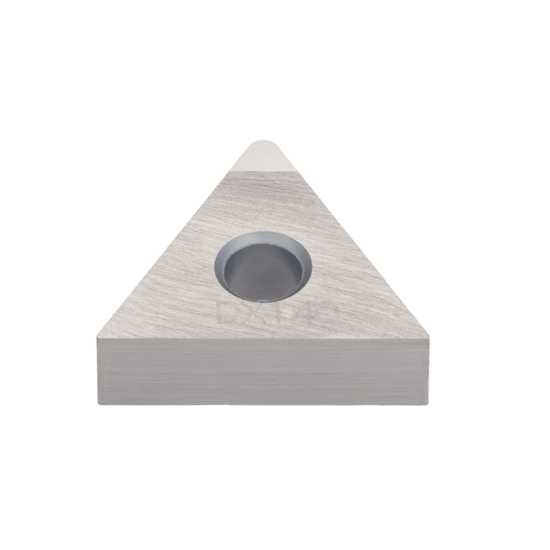

Negative relief ang., G class, triangular PCD insert

File Downloads

DXFSTPSTPL

Grade and Coating Description

PCD grade for machining half sintered ceramics and cemented carbides, stones and non-ferrous metals.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Finishing
Grade DX160
Package Size 10
Insert Type Negative
Application Turning Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating Aluminum, Graphite
Corner Radius 0.0160 0.41MM
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat PCD
Insert Style TN
