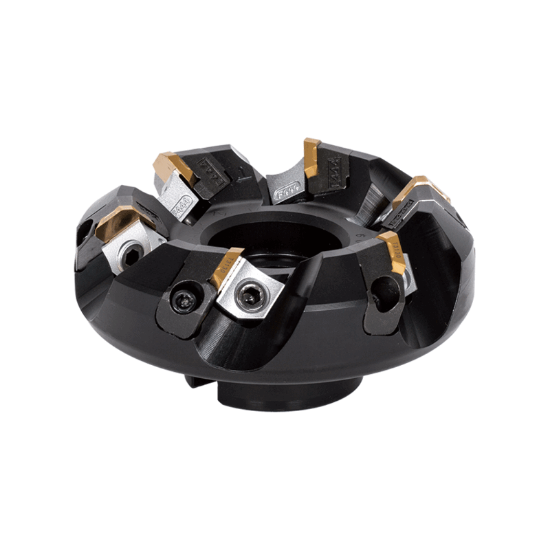

Picture of TUNGALOY TME4405RB Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 9 Flute

TUNGALOY TME4405RB Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 9 Flute

ANSI: TME4405RB

ISO: TME4405RB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808059
Delivery date: 3-5 days
$1,087.55
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 5.7170 145.21MM
Flutes/Inserts 9
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.9210 124.99MM
Depth Of Cut Max 0.1575
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Cutting & Machining Properties
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Seat/Nest 6805112
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6809565
