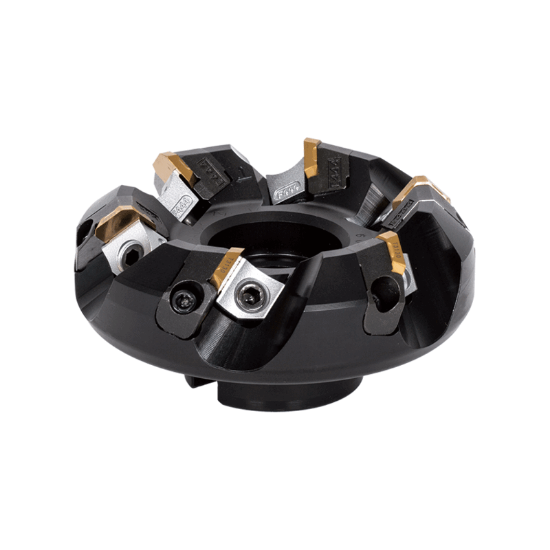

Picture of TUNGALOY TME4404RB Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 7 Flute

TUNGALOY TME4404RB Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 7 Flute

ANSI: TME4404RB

ISO: TME4404RB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808057
Delivery date: 3-5 days
$880.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Flutes/Inserts 7
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Insert Size Ic 12
Cut Dia Max 4.7320 120.19MM
Depth Of Cut Max 0.1575
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 6805112
Hand R/L Right
Coolant Thru No
Insert Style SE
Fasteners & Connectors
Clamp/Wedge 6809565
Clamp Screw 6804584
Seat Screw 6801818
