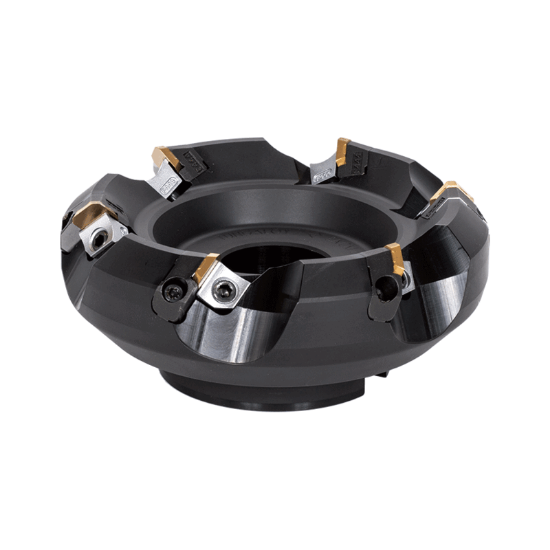

Picture of TUNGALOY TME4404LI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

TUNGALOY TME4404LI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

ANSI: TME4404LI

ISO: TME4404LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821330
Delivery date: 3-5 days
$712.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Cut Dia Max 4.0240 102.21MM
Depth Of Cut Max 0.1575
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Insert Style SE
Seat/Nest 6848121
Fasteners & Connectors
Clamp/Wedge 6848123
Clamp Screw 6804584
Seat Screw 6801818
